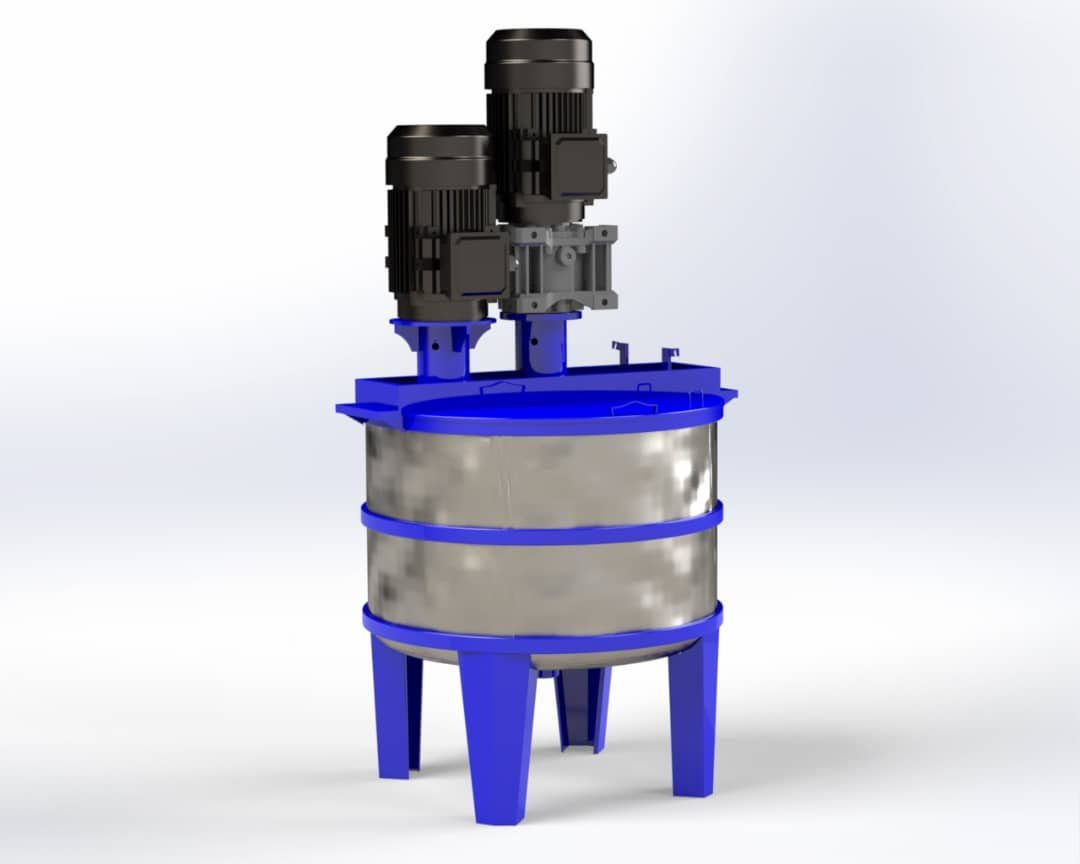

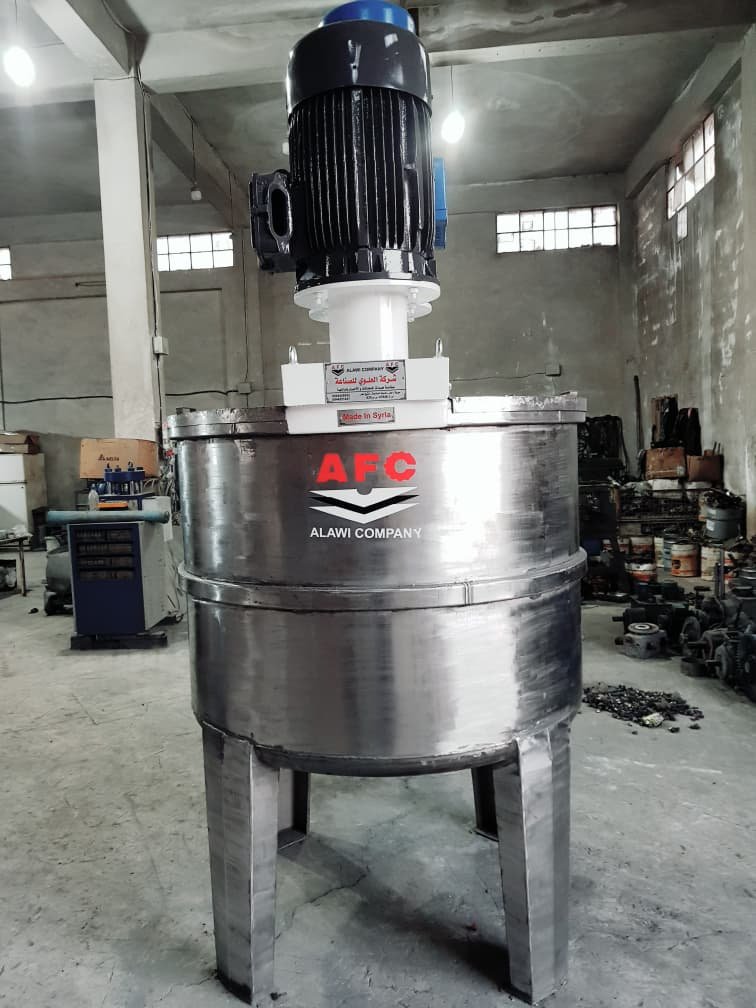

Paint mixer

It is a machine specially designed to mix paint liquids, additives (glue) and chemicals in a homogeneous and efficient manner

Main parts

Engine : Power source

The Arm : The part that connects the motor to the blade

The blade : The part that rotates inside the paint is a blade suitable for all types of mixing

Control knob: Machine rotation direction control and speed control switch

Mechanical specifications

Equipped with a 25 hp motor for slow motion and a gearbox for kneading high viscosity materials

Equipped with a 40 HP motor that mixes liquid and disperses materials and powders used in the manufacture of pastes at a rotation speed of 1400 rpm

the weight: 1420 kg/1500 kg

Capacity

Materials used: Chrome – Copper – Steel – Rubber – Ecobond

Technical specifications

The mixer is made of high-quality, rust-resistant chrome metal

Dimensions: Diameter 125 cm – Height: 115 cm,   Height from the bottom of the mixer to the ground: 65 cm

There is an electronic scale for filling (upon request)

The mixer has two discharge ports. The first is 5 inches in diameter and the second is 3 inches in diameter (upon request)

Equipped with a complete electrical control panel for operation and another panel that includes motor breakers and protections

The manufacturer gives a one-year warranty from the date of installation
